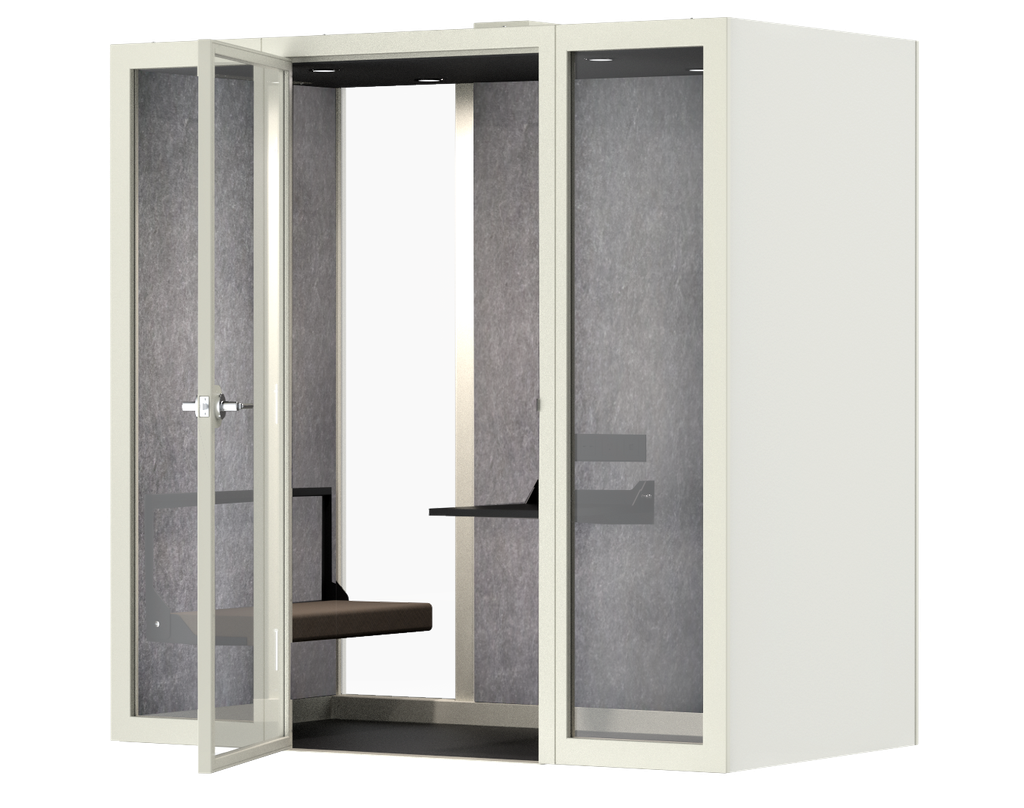

DECIBEL® ADA
Decibel® ADA – the spacious office pod redefining inclusivity and collaboration. Whether accommodating two individuals in wheelchairs or one in a wheelchair plus two more, it's the ideal space for teamwork and productivity.
Meets ADA T Shape during radius with 36" doorway.
48"x 86" x 85" height
Power module in center back wall.
Optional Furniture: ADA Flip-Up Furniture or sidewall worksurface configurations
LEAD TIME - 4-6 Weeks
SHIPPING - 2-7 Business Days
MADE IN USA.
| Frame Color: White |
PRIVACY THAT PERFORMS
Features At A Glance
EXTERIOR 85”H x 86”W x 48”D *
INTERIOR 82”H x 82”W x 43”D *
DOOR 36” x 80” RH or LH
*Dimensions may vary slightly
Booth sits flat on floor with 1/4" doorway threshold
Meets ADA T-shape turning Radius
WEIGHT Approx. 1,000 lbs
FRAME Powder Coated Steel Black or White
INTERIOR PANELS Charcoal acoustical PET felt (optional upholstery colors available)
EXTERIOR SIDES Black or White HPL (optional woodgrain available)
CLEAR PANELS Anti-shatter acrylic windows; Back panel clear window (Solid back panel optional)
FLOORING Charcoal Black Carpet
DOOR Left or right-handed with standard passage handle
COUNTERTOP Standing height black wood grain countertop (Height Adjustable Optional)
Power Outlets Standard 120v 3-prong outlet (5 amp draw) and USB ports (A &C)
6-8ft Power cord for Standard 110-120v outlet plug
4 recessed LED lights with adjustable color temperature 3500- 4500k
Light switch for lighting & ventilation (motion sensor optional)
Quietflow™ ventilation system with 2 fans: 1280 CFM
Fireshield™ Fire Suppression System (Optional)
SGS
UL 962 Certified
ASTM 84
UL 94
Patent Pending
DESIGNED FOR YOU FROM THE INSIDE OUT
Different By Design
REDUCING DECIBELS
Three layers of soundproofing material removes all distractions, giving everyone in the office a moment of peace.
KEEPING YOU COOL
Our proprietary airflow system is designed to keep you cool, by quietly circulating the air inside the booth, while maintaining acoustical privacy.
SAFETY FIRST
FireShield™ (Patent Pending) is a heat-activated fire suppression technology available in all our PODs, ensuring fire codes are met while maintaining modularity and flexibility to relocate units.
DESIGN IT YOUR WAY
Printworx™ utilizes a state-of-the-art UV printer to create any design on either the outer frame or inside PET felt, in order to maintain optimal acoustics.
Customizations, Volume Pricing, and More
Endless configuration options with Quietworx Upholstery and Vinyl Wrapped Graphics.. Made locally in the USA for fast customization. Tell the Spaceworx Team what you need!
